Report-based engineering study

Stepped Shaft CAD/CAM Simulation

A Boxford workflow from a coordinate-defined shaft profile to a verified 3D form, tool library and virtual CNC turning sequence.

Boxford V10 CAD/CAMMT2i lathe simulationG-code
Metallic turned-shaft model displayed against a black background. Enlarge image
Shaded verification view of the stepped shaft and its transitions.

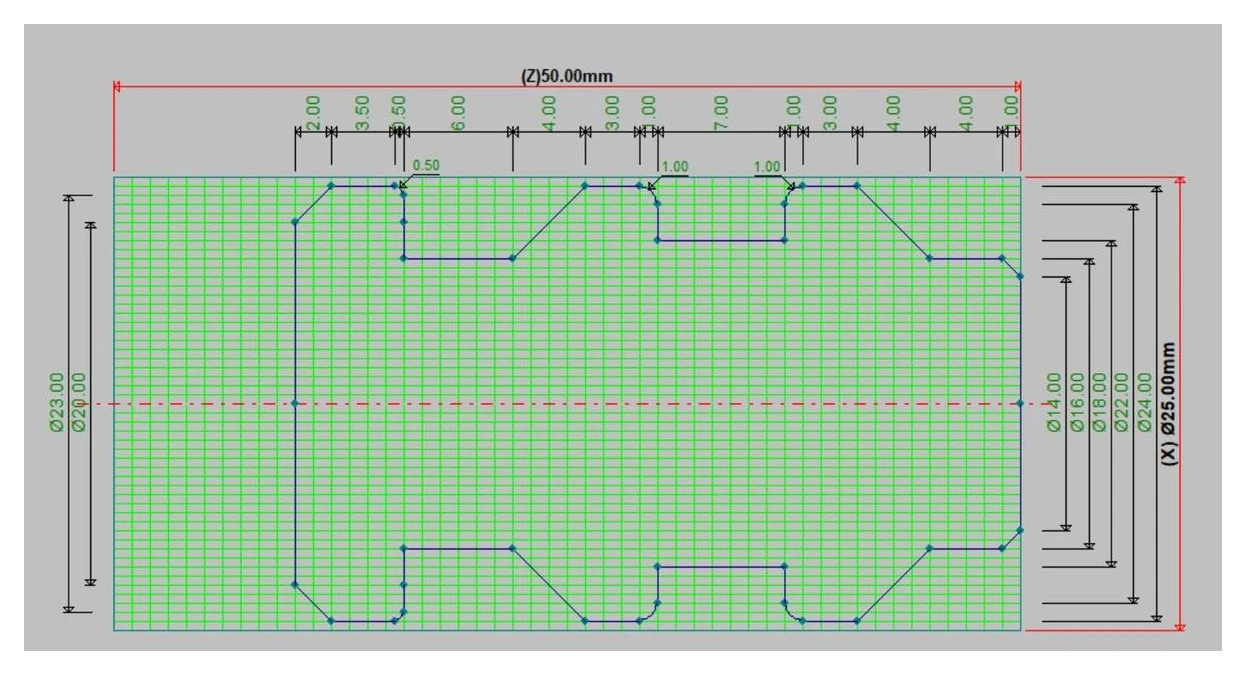

Coordinate grid with a fully dimensioned shaft profile and 50 mm axial extent. Enlarge image
Dimensioned profile used to define the revolved shaft geometry.

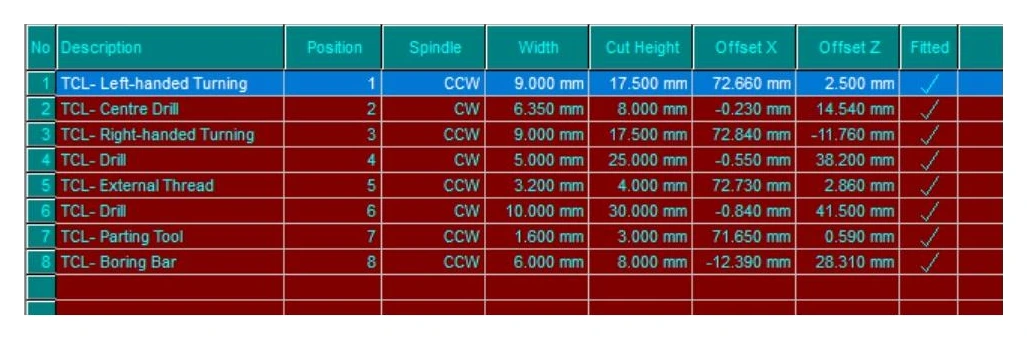

Tool settings table with eight entries for turning, drilling, threading, parting and boring. Enlarge image
Configured tool library supporting the planned machining workflow.
Grey stepped shaft with red remaining stock and a coloured tool shown nearby. Enlarge image
Virtual turning view distinguishes stock from the simulated finished shape.
Circular end view of the shaft with remaining stock and a tool above. Enlarge image
End view used to inspect the simulated turning configuration.

Select an image to inspect it. Use the arrow keys to browse the gallery.

Project brief

This project documents a digital manufacturing workflow for a stepped shaft in Boxford V10 CAD/CAM using an MT2i lathe configuration. The process starts with a cylindrical billet defined by its outside diameter and working length, then constructs a turning profile through coordinate entry. The profile includes stepped diameters, grooves, tapered transitions, rounded shoulders and chamfers. Dimensioned two-dimensional geometry provides the basis for checking the revolved form, while shaded model views show the resulting shape from several directions. A configured tool library supports the intended turning operations, and the report records G-code generation and virtual machining views that distinguish remaining stock from the finished component. The work also connects the digital model to a proposed inspection plan, selecting suitable methods for diameters, lengths, shoulder positions and runout. Physical cutting was not carried out, so the dimensional targets and simulation status are kept separate from actual measured results. The deliverable demonstrates preparation for CNC manufacture: stock definition, profile control, model verification, tool selection, program generation and an inspection strategy that could be applied after a future machining run.

The engineering challenge

Translate a coordinate-defined profile into a coherent turning simulation and inspection plan while keeping digital verification distinct from physical machining results.

Engineering approach

  1. Selected the lathe configuration and defined cylindrical stock.
  2. Constructed and dimensioned the shaft profile using coordinate entry and transition features.
  3. Checked the revolved geometry using shaded three-dimensional views.
  4. Configured the tool library, generated the part program and reviewed virtual stock removal.
  5. Mapped key dimensions to proposed caliper, micrometer and profile-inspection checks.

Results & observations

25 mmStock diameter

Defined billet outside diameter in the CAD/CAM setup.

50 mmWorking length

Defined axial stock length.

2 mmChamfer size

Chamfer value used in the reported profile.

8Configured tool entries

Tool library lists turning, drilling, threading, parting and boring options.

Features & capabilities

  • Coordinate-defined turning profile
  • Stepped diameters and grooves
  • Tapered and rounded transitions
  • Shaded model verification
  • Virtual machining and G-code generation
  • Proposed dimensional inspection plan

Software & engineering tools

Boxford V10 CAD/CAM, MT2i lathe simulation, G-code
